LCEA Inserts

LCEA Type

for "558" Series Cutters

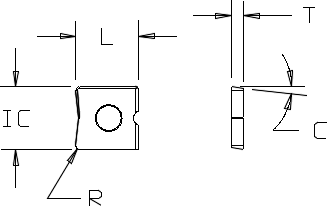

**Insert Dimensional & Grade Specifications**
Insert Number	IC	L	T	R (Min.)*	C	All Materials Finishing and Light Roughing Only
Insert Number	IC	L	T	R (Min.)*	C	LTC-10	LT-90
LCEA-41.52	0.500	0.500	0.098	.031	7°		•
LCEA-41.54	0.500	0.500	0.098	.031	7°		•
LCEA-522	0.625	0.550	0.118	.031	7°		•
LCEA-524	0.625	0.550	0.118	.031	7°		•
LCEA-622	0.750	0.625	0.118	.031	7°		•
LCEA-624	0.750	0.625	0.118	.031	7°		•
LCEA-82.52	1.000	0.850	0.157	.031	7°		•
LCEA-82.54	1.000	0.850	0.157	.031	7°		•

*Note: Other insert corner radii also available upon request.
