ZCEG Inserts

ZCEG Type

for "558" Series Cutters

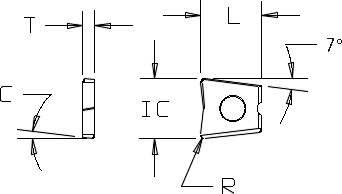

**Insert Dimensional & Grade Specifications**
Insert Number	IC	L	T	R (Min.)*	C	All Materials Finishing and Light Roughing Only
Insert Number	IC	L	T	R (Min.)*	C	LTC-10	LT-90
ZCEG-41.52	0.500	0.500	0.098	.031	7°		•
ZCEG-41.54	0.500	0.500	0.098	.031	7°		•
ZCEG-522	0.625	0.550	0.118	.031	7°		•
ZCEG-524	0.625	0.550	0.118	.031	7°		•
ZCEG-622	0.750	0.625	0.118	.031	7°		•
ZCEG-624	0.750	0.625	0.118	.031	7°		•
ZCEG-82.52	1.000	0.850	0.157	.031	7°		•
ZCEG-82.54	1.000	0.850	0.157	.031	7°		•

*Note: Other insert corner radii also available upon request.
